Plugs into 4 pole TRRS X1 or X2 jacks on Microsoft Access Controller or circular 8 pin analog joystick port on all designed adaptive videogame controllers distributed by Broadened Horizons Inc. including:
- Microsoft Access Controller
- Ultimate Arcade 2
- Versatility v2, v3, & v4 Programmable (upgrade adapter available for v1)
- Head Gamer
- Versatility4PC Programmable Mouse/Keyboard/PC game controller.
Includes TWO knobs:
- Optional Integrated Sip-n-Puff Tubing plus Joy Button

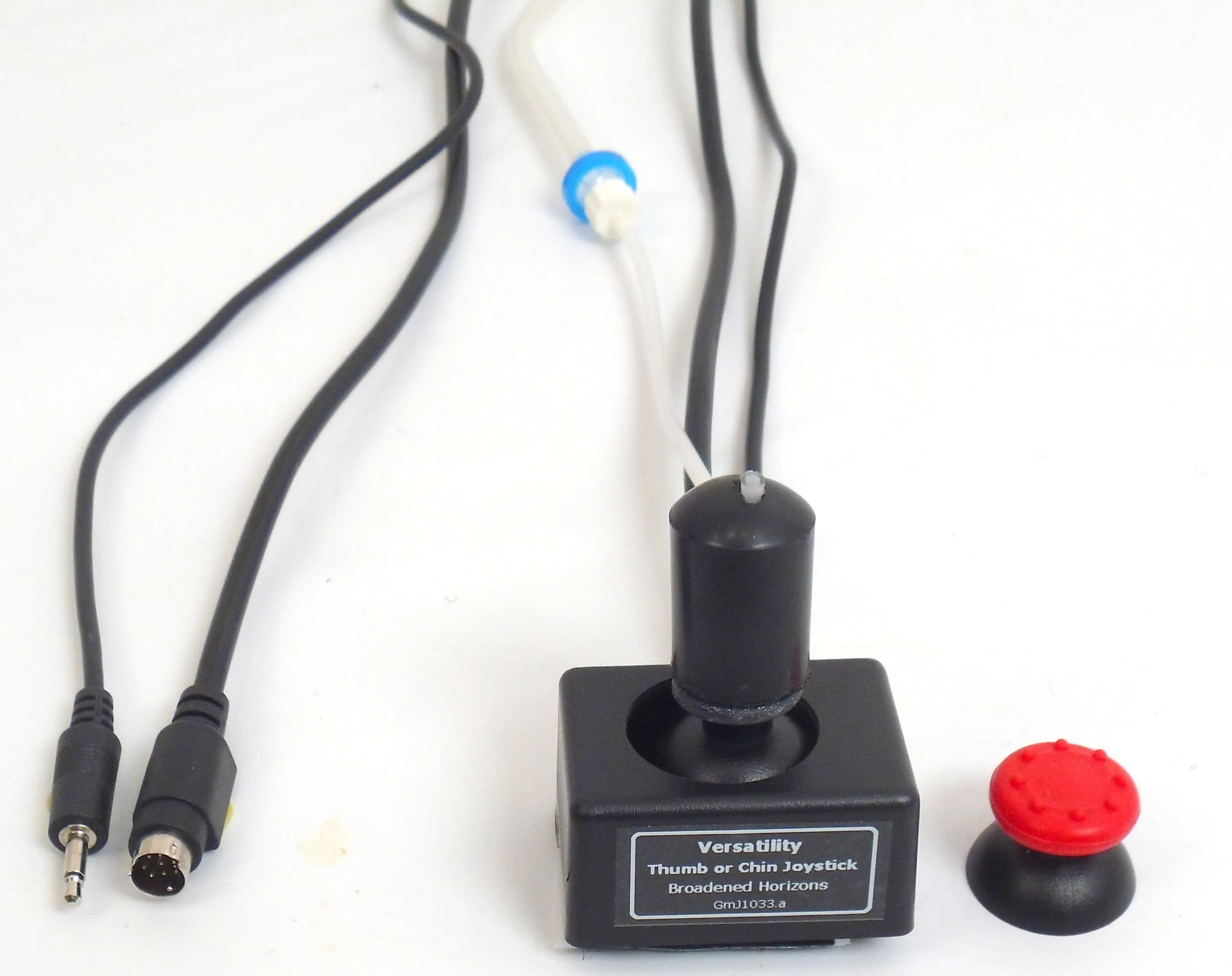

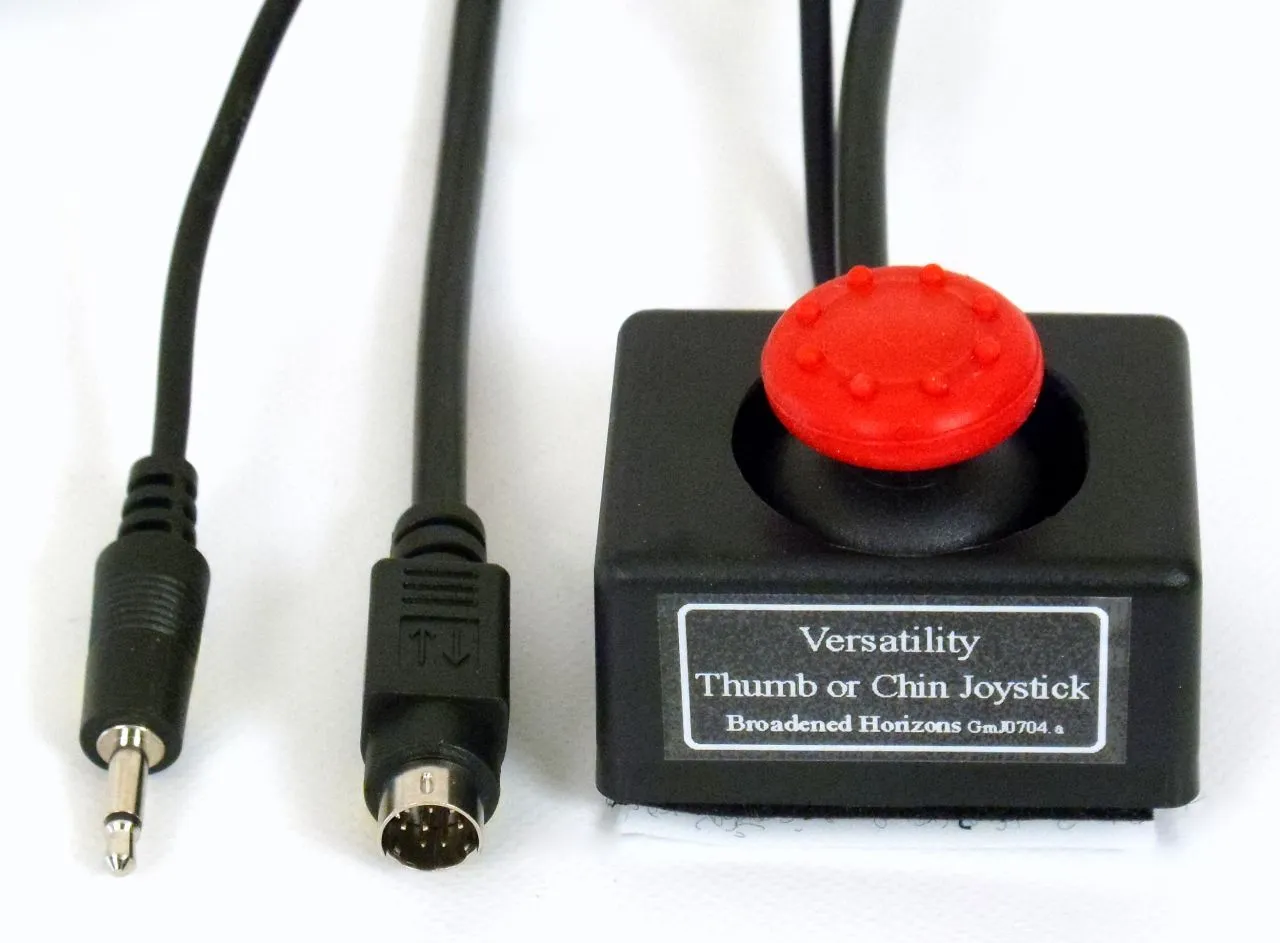

- Red Tactile Thumb Knob (also great directly under chin)

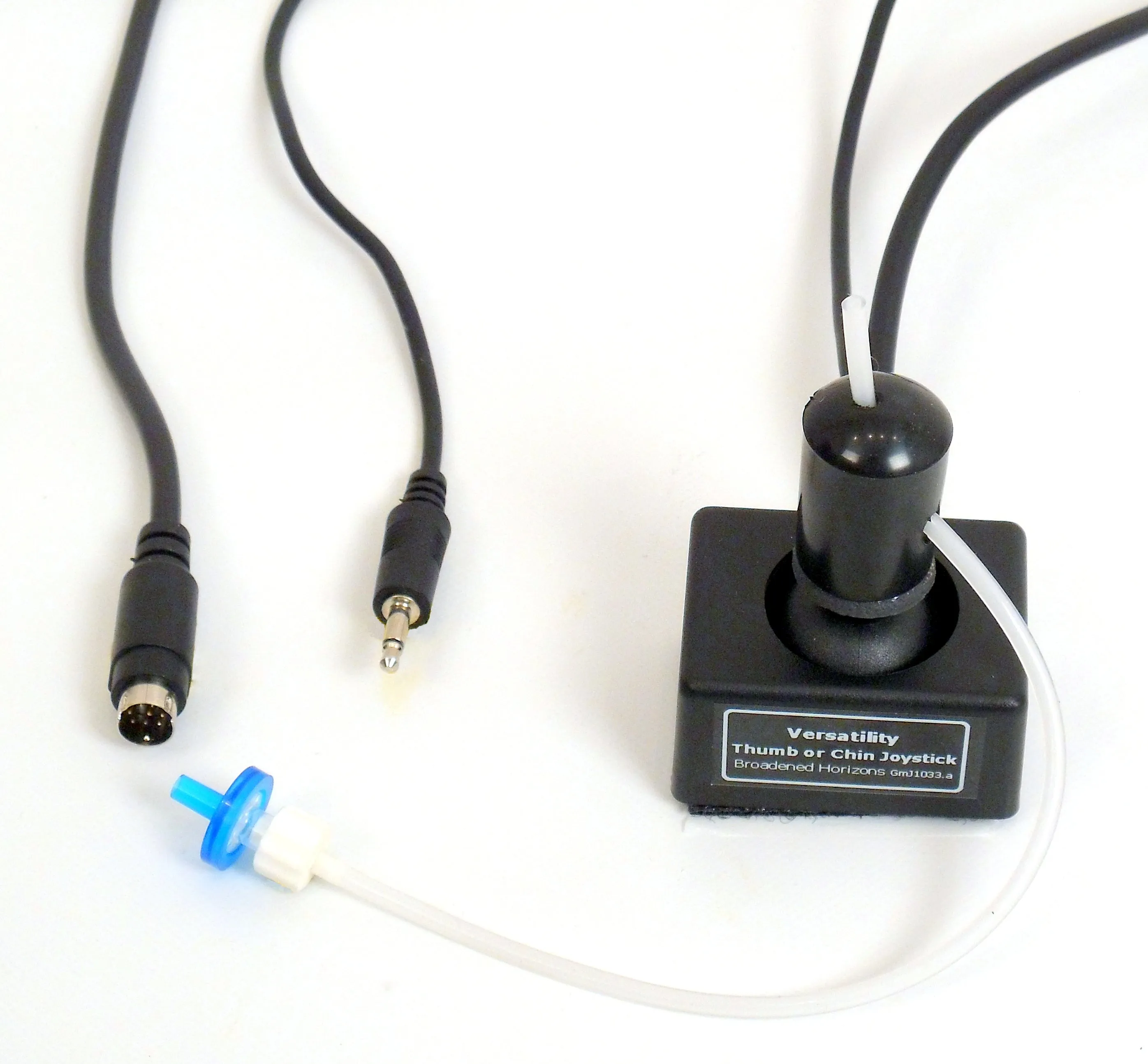

- 1.5 inch Black Mouth/Finger Extension with smooth round dome that is comfortable to rest one's lips up against. Increased length provides smoother motion with better control. Joystick size, feel, and movement is identical to standard OEM joystick on PlayStation and Xbox controllers but in its own compact 2"x 1.5"x .7" box for optimal and ideal positioning. Includes Sip & Puff Tubing Kit (switch available separately).
- For individual end-user purchasers includes Sip-n-Puff tubing directly integrated into the center of the joystick so that 2 buttons can be activated by blowing or sucking air while simultaneously moving the joystick.

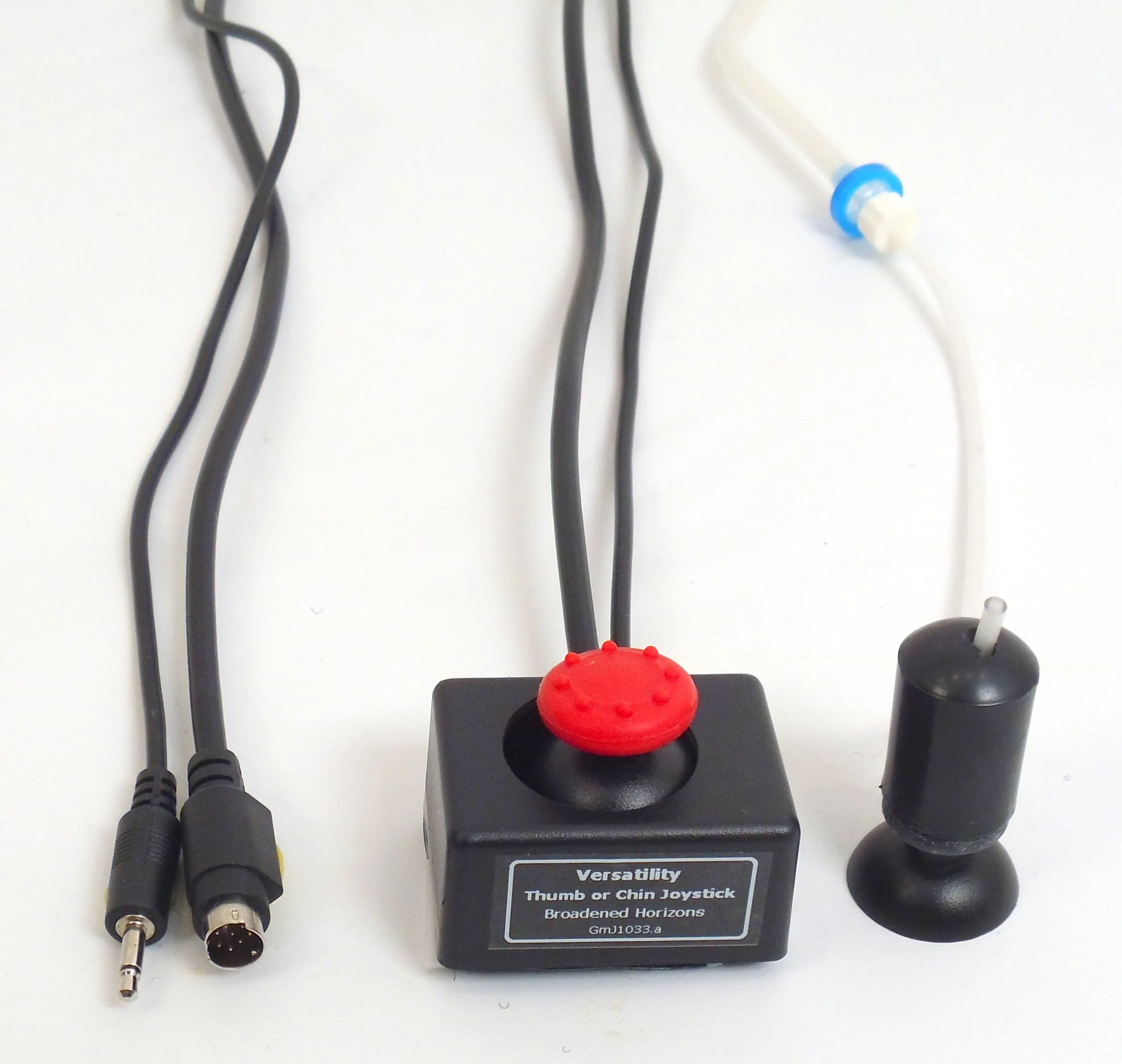

- Sip-n-Puff Tubing is not integrated into end of joystick for Multiuser environments such as rehabilitation centers for hygienic reasons so that joystick extension can be easily wiped off with alcohol swab. Instead Sip-n-Puff tubing with disposable Anti-Contamination Curved Mouthpieces is mounted in front of joystick.

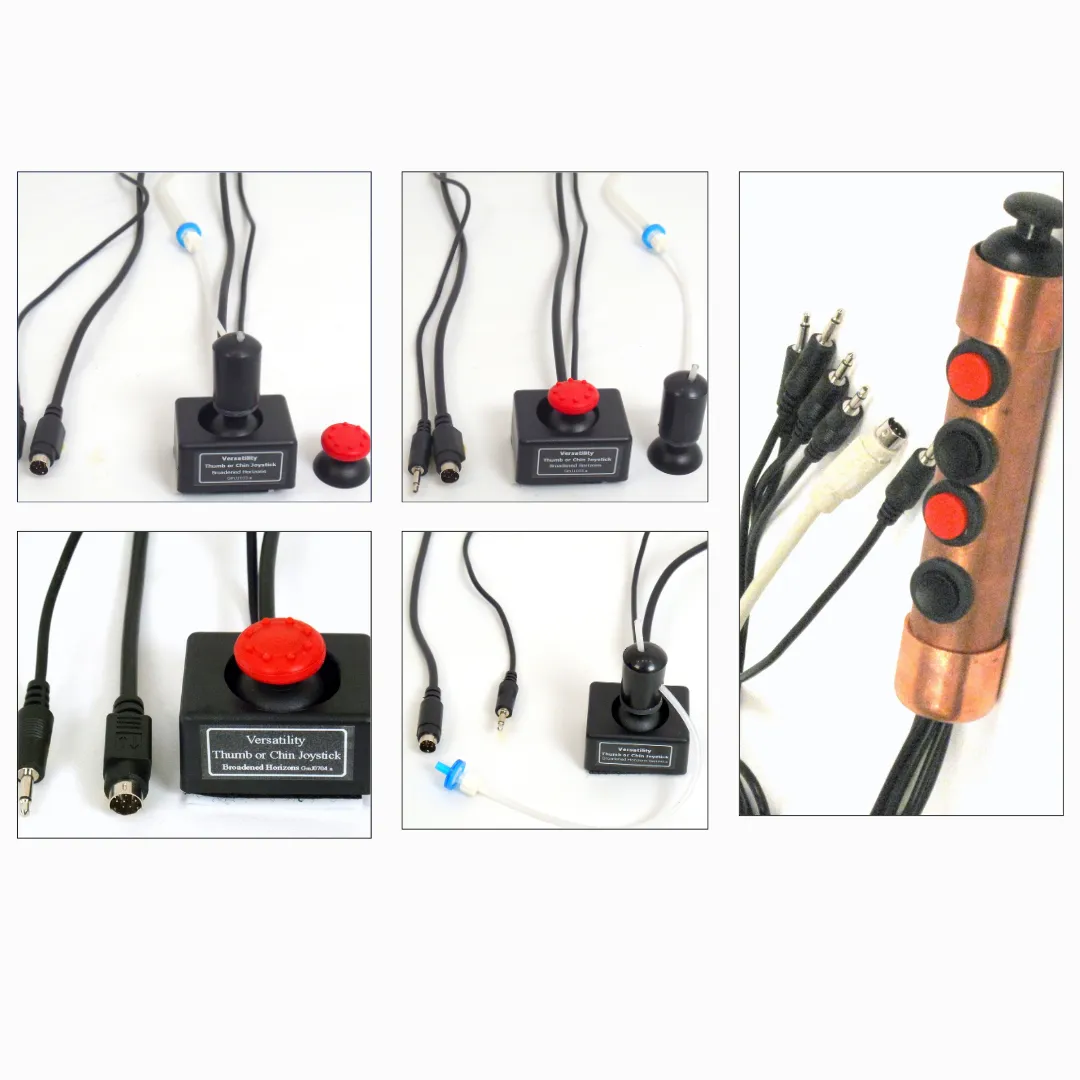

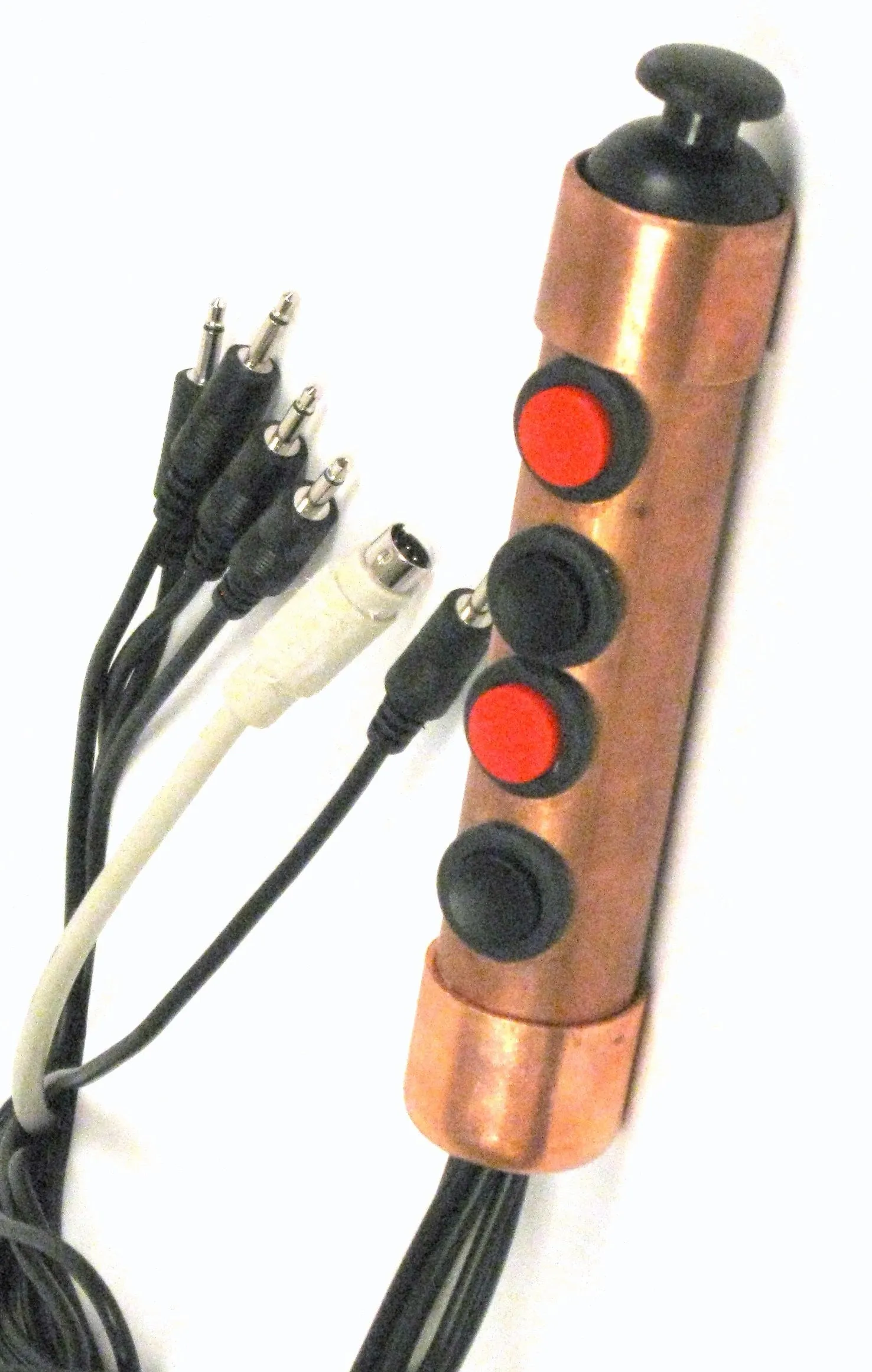

- Perfect when you mount 2 of these joysticks side-by-side on 3rd Arm Chin Mount with Roughneck Push Buttons below for use with chin. See Sip-Puff-Play Quad Package.
Includes one 3.5 mm male ability switch plug wire for Joy Button which activates when pushing down on joystick can be plugged into any Versatility or Ultimate Arcade 2 Ability switch jacks.

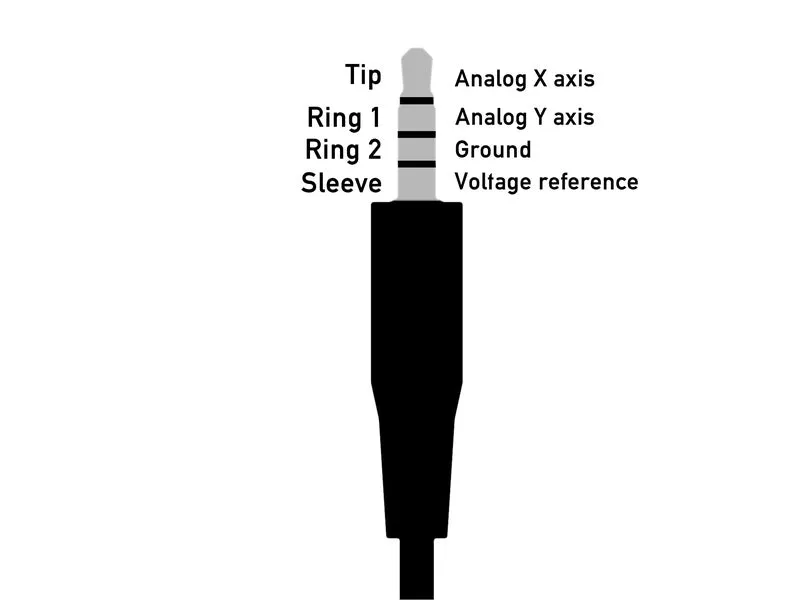

x = tIP = Red
Y = 1 = Green
GND = Ring 2 = White
Volt = Base = Yellow
